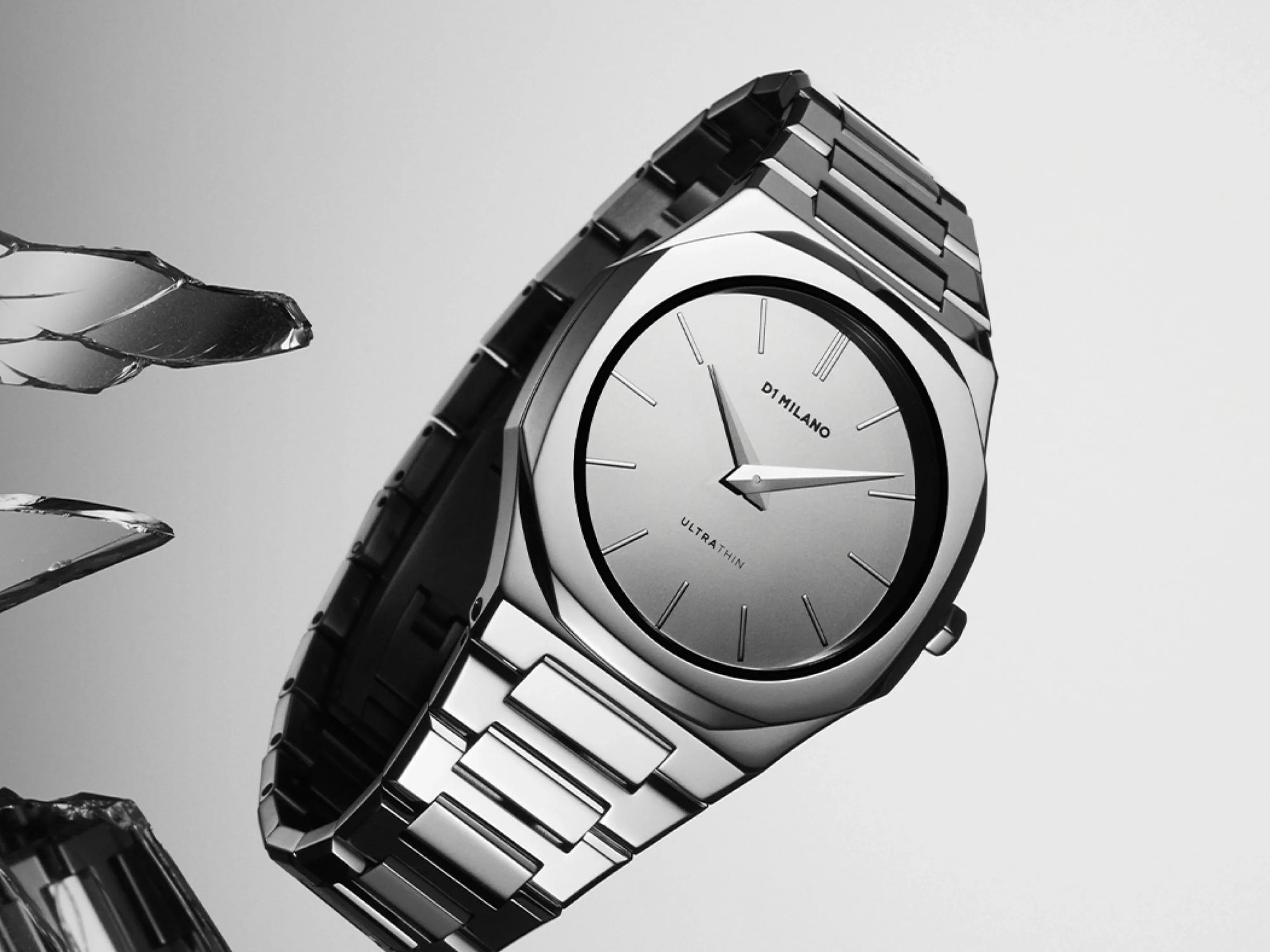

How Are Ultra Thin Watches Made? The Engineering Behind the Slim
Making a watch thinner sounds like a simplification. It is the opposite. Every millimetre removed from a case makes every remaining component harder to manufacture, harder to assemble, and less tolerant of error, which is why thinness has been one of watchmaking's genuine engineering disciplines for the better part of a century.
This is an explanation of how it is actually done: what determines a watch's height, which parts of the stack can be compressed, what happens at the extreme end, and where the practical limits sit for a watch you intend to wear rather than admire. It also looks at how D1 Milano, as an Italian design house, applies these same principles to build a slim, accessible watch.
The Challenge of Building a Thin Watch
A watch is a vertical stack of components, and its total height is the sum of them: caseback, movement, dial, hands, crystal, and the bezel holding it together. Reducing overall thickness means reducing every layer, and each layer has a floor below which it stops functioning.
The difficulty compounds rather than accumulates. Thinning a mainplate reduces its rigidity, which means the gear train can flex under load, which means the pivots that were previously fine now bind or wear. Thinning a crystal makes it more vulnerable to flexing under pressure, which can bring it into contact with the hands. Every reduction creates a second-order problem somewhere else.
Tolerance is the other constraint. In a conventional movement, components have enough clearance that small manufacturing variations are absorbed harmlessly. In a slim movement, the same variation as a proportion of the available space becomes significant. Parts that would fit in a standard calibre have to be made to tighter specifications, which raises cost sharply and reduces yield.
Then there is assembly. A conventional movement can be built in stages with room to manoeuvre. An ultra thin movement often has to be assembled in a specific order with no ability to correct a mistake without starting again, because there is no space to lift a component clear of its neighbours.
This is the reason a slim watch costs more than a thick one with otherwise identical specifications. The thinness is the expensive part. For a closer look at how a slim case compares to a standard one feature by feature, see our guide to ultra thin watch versus regular watch.
How Movement Choice Determines Thickness
Movement height is the single largest term in a watch's total thickness, and it is the decision that sets the ceiling for everything else. A standard mechanical automatic movement carries a rotor, mainspring barrel, and gear train stacked vertically. A low-profile quartz movement removes most of that depth immediately.
The mechanical problem is the rotor. In a conventional automatic, a weighted rotor sits on top of the movement and sweeps across its full diameter, adding its own height plus clearance to everything below it. Two solutions have historically addressed this. The micro-rotor, which Piaget used in its calibre 12P of 1960 to reach 2.3mm, sinks a smaller weight into the plane of the movement rather than sitting above it. The peripheral rotor moves the weight to the outer edge, freeing the centre entirely.
Hand-wound movements avoid the problem by removing the rotor altogether, which is why the historical thinness records were set by manual calibres. Vacheron Constantin's calibre 1003 of 1955 measured 1.64mm, and Piaget's 9P of 1957 measured 2mm. Both were hand-wound, and both remain reference points seventy years later.
Contemporary slim mechanical movements sit in a similar territory. Nomos builds its automatic DUW 3001 at 3.2mm and the DUW 6101 with integrated date at 3.6mm, which are genuinely impressive figures for series production.
Quartz removes the constraint differently. Without a mainspring barrel or a rotor, the depth needed is a fraction of a mechanical calibre's. This is why the majority of genuinely slim watches at accessible prices use quartz, and it is the specific reason D1 Milano's ultra thin watch collection can hold 6mm to 7mm at its price point, using low-profile Citizen Miyota movements.
Case Construction and Materials
The case contributes the remaining height through the caseback, the bezel, and the crystal. Reducing it means thinning each element, sitting the caseback as close to the movement as possible, and accepting the consequences for water resistance and rigidity.
The crystal is a more significant contributor than most people expect. A thick crystal is stronger and more resistant to flexing, but it adds directly to total height. Sapphire is the material of choice because it is dramatically harder than mineral glass, but sapphire is also brittle, so thinning it requires care. When Bulgari reduced its record-holding Octo Finissimo from 1.80mm to 1.70mm, optimising the sapphire crystal was one of the changes that made the difference.
Case material affects how thin the structure can go before it flexes. Grade 5 titanium and tungsten carbide appear repeatedly at the extreme end because both are exceptionally rigid, and rigidity is what allows a thin case to hold its shape under wrist pressure. At accessible prices, 316L stainless steel is the practical choice: rigid enough, corrosion resistant, and it takes and holds finishes well.
Water resistance is where the compromise lands. Gaskets need physical space to compress, and a case engineered to minimise every millimetre has less of it. This is a structural constraint rather than a cost decision, and it is why most slim watches are rated for rain and splashes rather than swimming. D1 Milano's core models carry 5 ATM, which is appropriate for the category.
The bezel and case profile also matter visually. A case with defined edges and a flat top reads thinner than a domed one at identical measurements, which is why architectural case shapes dominate the slim watch category.
The Limits of How Thin a Watch Can Go
At the extreme end, conventional construction is abandoned entirely. The current record for a production mechanical watch belongs to independent watchmaker Konstantin Chaykin's ThinKing Mystery, a limited run of twelve pieces measuring 1.65mm, which edged past Bulgari's Octo Finissimo Ultra COSC at 1.70mm. The Bulgari remains the reference point for a large-brand achievement: it reaches that depth by making the tungsten carbide caseback serve as the movement's mainplate, so two components become one, with its calibre BVL 180 measuring 1.50mm thick.
Two distinct strategies have emerged among the brands chasing these records. The first is integration: fusing the caseback and mainplate so the case becomes structural rather than protective. Piaget pioneered this with its calibre 900P, which enabled Altiplano watches at 3.65mm, and both Bulgari and Chaykin have taken the same principle further.
The second is redistribution. Richard Mille's RM UP-01 Ferrari reached 1.75mm by spreading movement components across a single layer over a large surface rather than stacking them, in a case measuring 51mm by 39mm in grade 5 titanium. Its movement is 1.18mm thick. The trade is obvious: the watch is extremely thin and extremely large, with an unconventional offset display, because there is no room for a centrally mounted hand stack.
These watches also illustrate the costs. The Octo Finissimo Ultra COSC was produced in twenty pieces, and the ThinKing Mystery in just twelve. The RM UP-01 was limited to 150 and priced at $1.8 million. Winding and setting on some record holders requires dedicated tools rather than a conventional crown, because a crown will not fit in a case this thin.
The practical limit for a watch you actually wear is considerably higher. Below roughly 5mm, water resistance becomes marginal, crown operation becomes fiddly, and the case becomes vulnerable to flexing. Between 6mm and 8mm sits the range where a watch is genuinely slim and still behaves like a watch. Our ranking of the thinnest watches for men covers where each of these sits.
How D1 Milano Balances Slimness and Durability
D1 Milano reaches 6mm to 7mm by pairing a low-profile Citizen Miyota quartz movement with a case engineered around it, rather than by shrinking the watch overall. That choice keeps the diameter generous at 30mm to 40mm and allows the durability specifications to remain intact.
The movement decision is the load-bearing one, and the brand states it plainly on its own collection page: a mechanical movement would require significantly more depth. Accepting quartz is what makes the rest of the specification affordable, and it brings genuine advantages of its own in accuracy and maintenance.
This is where D1 Milano's Italian design instincts take over. As an Italian design house, the brand treats slimness as a design language rather than a purely mechanical exercise: the octagonal case, the finishing, and the dial layout are all built around the discipline a slim profile demands, so form and engineering move together rather than one simply serving the other.
With the movement height resolved, the remaining engineering goes into the case. The crystal is thin but it is sapphire with an anti-reflective coating across the entire range rather than on selected models, which is the specification most likely to determine how the watch looks after two years of wear. The case is 316L stainless steel, rigid enough at this thickness and resistant to the corrosion that plated base metals suffer from skin contact.
The integrated bracelet is a structural decision as well as a design one. Because the 316L steel bracelet flows directly out of the case rather than attaching through separate lugs, there is no step in height at the transition, and the whole object stays at one level. Links are removable so fit can be adjusted precisely, and the effect is visible across the slim watches for men in the range.
Water resistance sits at 5 ATM on most core models, which is the honest ceiling for a case this slim and is sufficient for rain, splashes, and hand washing. Every timepiece bought directly carries a two year international warranty.
For a model-by-model breakdown of how these specifications apply across the range, see our Ultra Thin collection guide. Browse the full Ultra Thin collection to compare finishes, or start with the Moss Ultra Thin, a 40mm case at 6.2mm that shows the engineering described above in a single model.
Frequently Asked Questions
How are ultra thin watches made?
By reducing every layer of the watch's vertical stack: movement, dial, hands, crystal, caseback, and bezel. Movement choice is the dominant factor, since a low-profile quartz or a specially engineered slim mechanical calibre sets the ceiling for everything else. The case is then designed tightly around it, with a thin crystal and a caseback sitting close to the movement.
Why are thin watches harder to make?
Because reducing thickness reduces tolerance. Components must be manufactured to tighter specifications, thin mainplates flex more easily under load, and assembly often has to follow a fixed order with no room to correct errors. Every millimetre removed creates second-order engineering problems, which is why a slim watch costs more than a thick one with otherwise identical specifications.
How thin can a watch actually be?
The current record for a production mechanical watch is 1.65mm, held by Konstantin Chaykin's ThinKing Mystery, a 12-piece limited edition that edged past Bulgari's Octo Finissimo Ultra COSC at 1.70mm. Reaching those depths requires abandoning conventional construction entirely. For watches intended for daily wear, the practical floor is around 5mm to 6mm before water resistance and usability suffer.
Are ultra thin watches fragile?
Watches in the 6mm to 8mm range are not meaningfully more fragile than thicker ones, provided they use a solid steel case and sapphire crystal. The genuine limitation is water resistance, since a slim case has less room for gaskets, so most are rated for rain and splashes rather than swimming. Record-setting watches under 2mm are a different matter and are treated as delicate objects.
